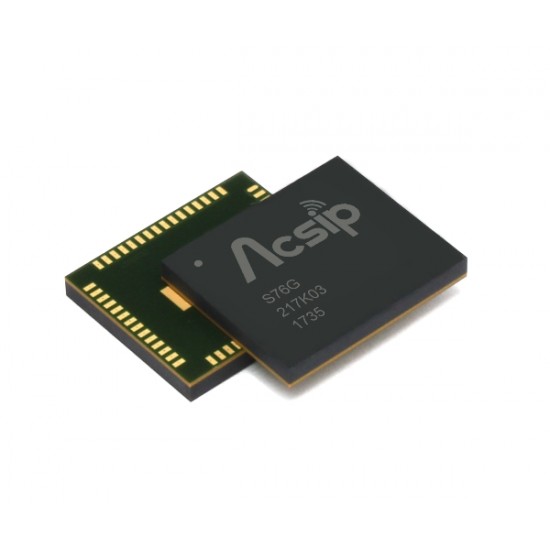

LoraWAN NODE SiP Chip SX1276 + ARM Cortex M0 MCU + SONY CXD5603GF GPS

All In One IOT LORA + GPS 863-928MHz SiP Chip

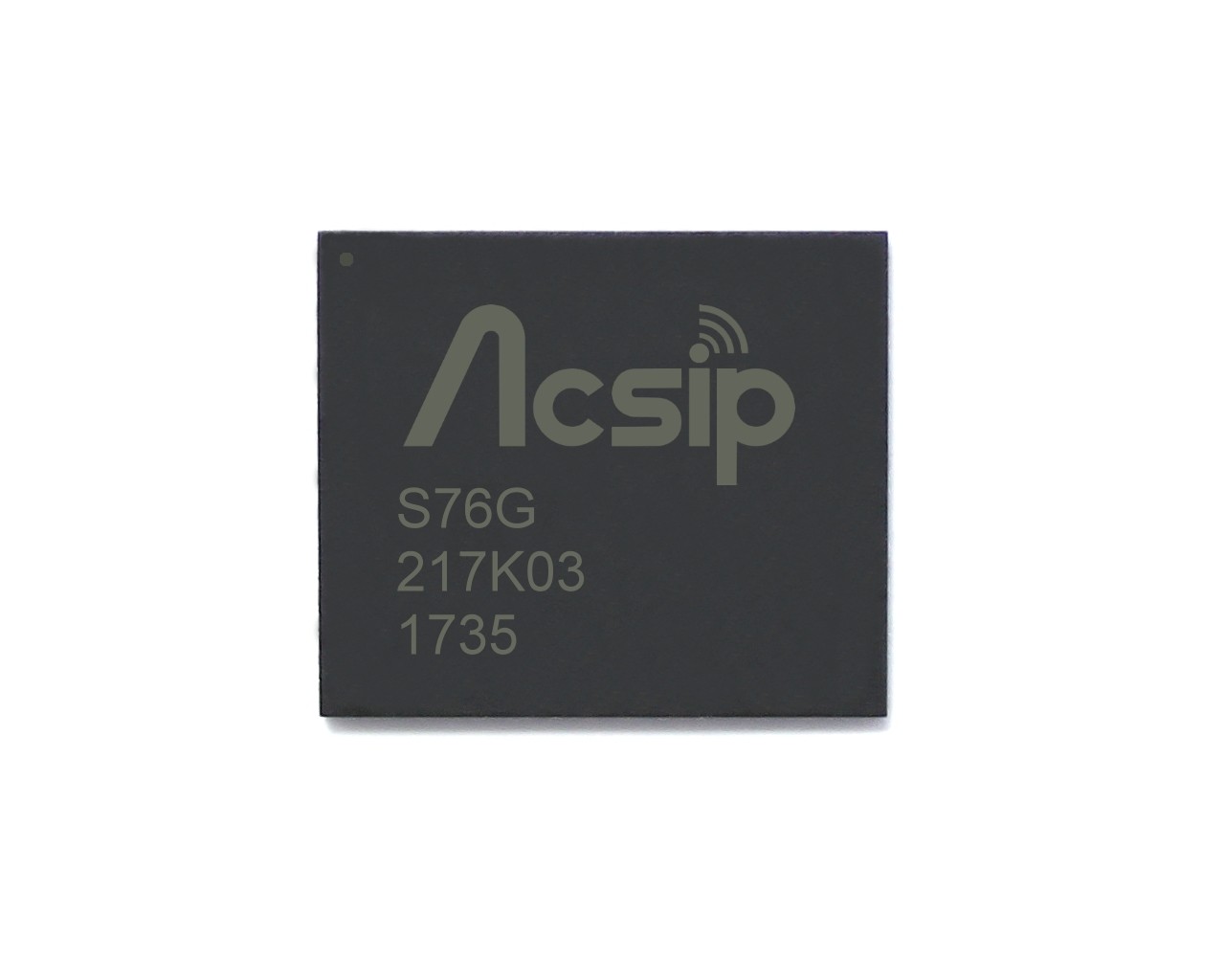

The S76G is designed & manufactured in a smallest form factor -SiP (System in Package). It integrates with SEMTECH SX1276 and a 32-bit ultra-low power Cortex M0+ MCU (STM32L073x), S76G supports global 863MHz or 928MHz ISM-Bands. Capable of 2-way communication and reach over 16 km (10 miles) distance in our field test. Besides, S76G contains a GPS chip –SONY CXD5603GF which is used to receive GPS/GPS+GLONASS signals for positioning.

This product is designed with multiple easy to use interfaces (I2C/SPI/UART/GPIO), fine-tuned RF performance and will be offered with complete SDK library & ready to go HDK, it can significantly help the users to shrink the size of end device and simplify the development efforts for any LoRa applications.


Cortex M0+ MCU STM32L07

Integrated in one module 13mm x 11mm x 1.55mm ;

  • Semtech SX1276
  • Sony CXD5603GF Chip GPS/GPS+GLONASS
  • Maximal output power100mW(20dBm)
  • Embedded memories (up to 192k bytes of Flash memory and 20k bytes of RAM)
MicrocontroleurST STM32L0
Radio915MHz
