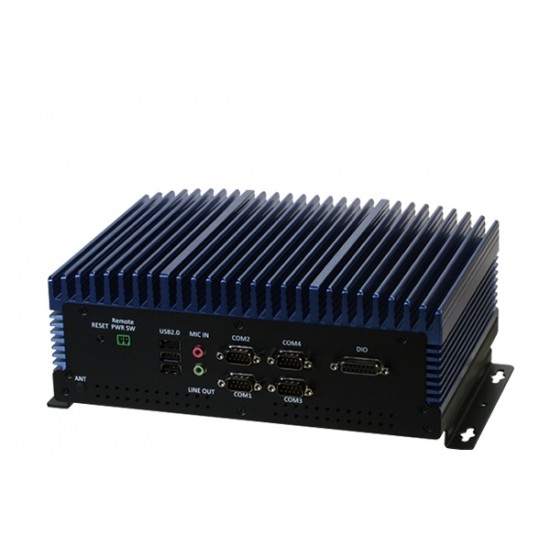

BOXER-6640
The BOXER-6640 is purpose built for factory automation and machine vision applications. With two LAN ports, four USB3.0 ports, and three USB2.0 ports, it can be connected to a range of cameras and sensors, and its 8-bit DIO enables it to control connected systems based on digital inputs. As it also has a VGA port and two further combined HDMI and DP ports for dual display output, this controller can easily serve as the hub of an effective HMI solution.
The BOXER-6640 is a rugged, fanless system and features a tough casing and an operational temperature range of -20°C to 55°C. It can withstand power surges and drops and has a DC input range of 9V to 36V. The system is also resistant to vibrations, especially when fitted with SSD storage instead of an HDD. Additional storage is available in the form of full-size mSATA and PCIE Mini Cards.
| Processeur | Intel® Core™ i3-7300T, Dual Core, 3.5 GHz , Intel® Core™ i5-6500TE, 2.3 GHz, Intel® Core™ i5-7500T, 2.8 GHz, Intel® Core™ i7-6700TE, 2.4 GHz , Intel® Core™ i7-7700T, 2.9 GHz, Intel® iCore™ i3-6100TE, 2.7 GHz , Intel® Pentium® N4200, 2.5 GHz |
| Chipset du processeur | Intel® H110 |
| Mémoire maximum | 32 GB |
| Port(s) LAN | 2 |
| Poids (kg) | 5.8 |
| Matériaux | Aluminium, Métal |
| Support | Desktop, Wallmount |
 | Général |
|---|---|
| Manufacturier | Aaeon |
| Code de produit | BOXER-6640 |
| Application | IdO, Industriel, Kiosques, Salles d'opérations, Sécurité, Usine de fabrication |
 | Spécifications techniques |
| Processeur | Intel® Core™ i3-7300T, Dual Core, 3.5 GHz , Intel® Core™ i5-6500TE, 2.3 GHz, Intel® Core™ i5-7500T, 2.8 GHz, Intel® Core™ i7-6700TE, 2.4 GHz , Intel® Core™ i7-7700T, 2.9 GHz, Intel® iCore™ i3-6100TE, 2.7 GHz , Intel® Pentium® N4200, 2.5 GHz |
| Famille Processeur | iCore 7ième gen |
| Chipset du processeur | Intel® H110 |
| Format carte Mère | Propriétaire |
| Mémoire Installé | Au choix du client |
| Mémoire maximum | 32 GB |
| Type de mémoire | 2 x DDR4 1866/2133 SODIMM Un-buffered and ECC / Non-ECC |
| Moteur graphique | Graphique HD Intel® |
| Type de stockage | mSATA, 2.5'' HDD/SSD |
| WiFi | Aucun |
| Connecteur(s) mini carte | Full-size Mini-Card x 1 (PCI-E + USB, w/ SIM slot) Full-size Mini-Card x 1 (mSATA + USB) |
| OS testé | Windows 10 IOT Enterprise, Win 7 Pro, Win 10, Linux |
 | Connecteurs |
| Sortie(s) Vidéo | HDMI x2, VGA |
| Port(s) LAN | 2 |
| Chipset LAN | Intel® I211AT x 1, I219LM x 1 |
| Port(s) USB2.0 | 3 |
| Port(s) USB3.0 | 4 |
| Port(s) RS-232 | 6 |
| Port console RJ45 | 0 |
| Port(s) DIO | 8-bit DIO |
| Connecteur compact flash | Non |
| Port(s) DB-15 | 0 |
| E/S Audio | 1x sortie - 1 x entrée micro |
| Port(s) PUSB 12V | 0 |
| Port(s) PUSB 24V | 0 |
 | Consommation d'énergie |
| Entrée DC | Entrée DC: 9V - 36V |
| Température d'opération | -20ºC ~ 55ºC |
| Température d'entreposage | -40ºC ~ 75ºC |
 | Physical |
| Certification(s) | CE, FCC Classe-A |
| Largeur (mm) | 264 |
| Hauteur (mm) | 96.4 |
| Profondeur (mm) | 186.2 |
| Poids (kg) | 5.8 |
| Matériaux | Aluminium, Métal |
| Couleur(s) | Noir et bleu |
| Support | Desktop, Wallmount |
