This is a portable gateway for lorawan based on SX1301. It's enclosed into a mobile rugged case with weels.

It can be customised to match your needs. The pictures and component details can all be selected and adjusted to your application needs.

The base is the computer it self. It's an Intel based, industrial network computer with four Intel LAN cards, four mini PCIE, Console port.

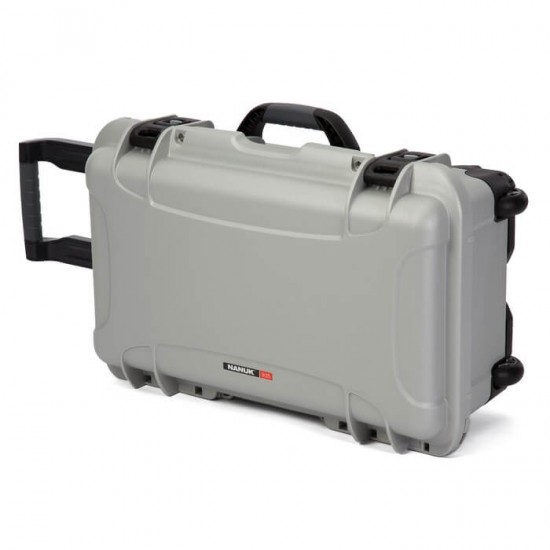

We have customised our industrial LCD panels to a snug fit on the top cover of the rugged Nanuk 935.

It's a 18,5'' Full HD screen with a 4mm cover anti reflection glass. the power input can support from 9-36volts DC.

In some case the touch might be needed, no problem we can add either resistive touch or capacitive overlay.

We added our certified WWAN module to add 4G/3G networks, it has a PTCRB certification and is approved at most Canadian/US carriers ( Bell, Telus, Rogers, AT&T)

The industrial wifi module will allow you to create a local AP or to connect to local wifi networks.

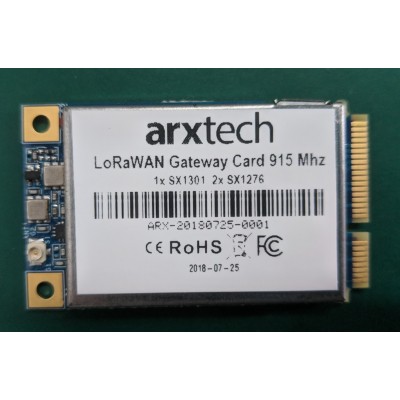

Finally we added a mini PCIE gateway SX1301 + 2 x SX1276 in one module to add Lorawan capability.

It runs the Semtech packet forwarder, a lora server based on loraserver.io that include the bridge, server and app server all inside the box.

This device is intended to easily do a customer site survey. Testings prior to do a final installation is always a good idea.

Since once closed down the case has a IP67 certification it's perfect for travelling around and testings lorawan in harsh environments like agriculture, mining and warehousing.

The USB hub allows you to charge multiple nodes, configure and flash them with your own code.

If you need a different configuration, with a smaller screen, or a different CPU configuration we can do customisation.
